Description
Used for fueling diesel, kerosene, not for gasoline Mechanical seal that guarantees constant reliability and even in low temperature. Cast-iron pump casing, treated against corrosion and paint finished. Vane pump with steel rotor. Bypass valve built-in. In-built 100 micron filter, easily accessible for cleaning. Induction motor with aluminum casing, protection grade IP54 Continuous running.
Model Specification
|
|
|
|||
|
Technical Specification |
|
|
|
|
|

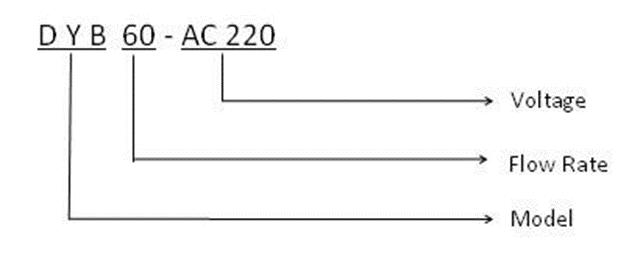

Model |
DYB60-AC220/110 |
DYB70-AC220 |
DYB80-AC220/110 |
DYB40-DC12/24 |
|
Flow Rate |
20L-60L/min |
20L-70L/min |
20L-80L/min |
20L-40L/min |
|
Max. Pressure |
3 Bar |
3 Bar |
3 Bar |
3 Bar |
|
Power |
AC220V±10% 50Hz AC110V±10% 60Hz |
AC220V±10% 50Hz |
AC220V±10% 50Hz |
DC12 DC24 |
|
By pass Valve |
Yes |
Yes |
Yes |
Yes |
|
Strainer |
Yes |
Yes |
Yes |
Yes |
|
Inlet & outlet |
1" |
1" |
1" |
3/4" |
|
Power |
375W |
500W |
550W |
120W |
|
Package Data |
|
|
|
|
|
Model |
DYB60-AC220/110 |
DYB70-AC220 |
DYB80-AC220/110 |
DYB40-DC12/24 |
|
Packaging |
2pcs/ Carton |
2pcs/ Carton |
1pcs/ Carton |
2pcs/ Carton |
|
Net Weight |
15kgs |
16kgs |
12kgs |
7kgs |
|
Gross Weight |
17Kgs |
17Kgs |
13kgs |
8kgs |
|
Size |
49×28×22cm |
49×28×22cm |
29×22×25cm |
49×28×22cm |
