SB Series Drum Pump is a kind of barrel pump. The tube can be directly put into the drum to pump liquid. As per different transferring liquids, the pump wet part can choose Aluminum Alloy, Stainless Steel, PP,RPP, PVDF,PTFE Material. The driving motor can be single phase common motor, Ex-proof motor, no brush motor & high-speed motor for option. It is easy to use, maintenance & high efficiency. It is widely used to transfer acid, petrochemical liquids, treatment water, drinks, gas, kerosene, diesel and some low-viscosity liquids in extensive fields of petrochemical, refinery, food, petro oil, marine, pharmacy, filling station etc..
|
||||||||||||||
|
Model |
VCB-50 |
VCB-80 |
VCB-100 |
VCB-150 |
|
Size |
DN50 |
DN80 |
DN100 |
DN150 |
|
Pump Speed |
780RPM |
640RPM |
520RPM |
520RPM |
|
Max.Flow meter |
300L/min |
550L/min |
1100L/min |
185L/min |
|
Vacuum |
0.03Bar |
0.03Bar |
0.03Bar |
0.03Bar |
|
Working Pressure |
15Bar |
15Bar |
15Bar |
15Bar |
KCB Series Series Gear Oil Pump
KCB-18.3KCB-33.3
KCB-55KCB-83.5
Description:
The gear-type oil pump is used for conveying a variety of oils, such as heavy oil, diesel oil, lubricating oil, crude oil etc., equipped with copper gears and explosion-proof motors can transport low flash point liquid gasoline, benzene and so on. Stainless steel pump is used for the food industry conveyor beverages, edible oil, milk, the pH of the liquid. The pump does not apply for solid particles and fibers liquid for viscosity of 5 × 10-5 ~ 1.5 × 10-3m2 / S. The medium temperature is not higher than 70 ℃. For transporting hot liquids, use a high-temperature gear pump, can transport liquid below 300 ℃.
The pump can be used in the oil transfer pump, booster pump and lubricating oil pump. Optional pump material cast iron, aluminum, or stainless steel according to customer requirements. Sealed seal, packing seal, mechanical seals for customers are for option.
Main Technical Parameter
|
Model |
Diameter (mm) |
Flow Rate L/min |
Pressure MPa |
Suction Head m |
Power KW |
|
KCB-18.3 2CY-1.1/14.5-2 |
3/4 |
18.3 |
14.5 |
5 |
1.5 |
|
KCB-33.3 2CY-2/14.5-2 |
3/4 |
33.3 |
14.5 |
5 |
2.2 |
|
KCB-55 2CY-3.3/3.3-2 |
1 |
55 |
0.33 |
5 |
1.5 |
|
KCB-83.5 2CY-5/3.5-2 |
1 |
55 |
0.33 |
5 |
2.2 |
|
KCB-83.3 2CY-5/5-2 |
1-1/2 |
83.3 |
0.33 |
5 |
2.2 |
|
KCB-200 2CY-8/3.3-2 |
1-1/2 |
83.3 |
0.33 |
5 |
3 |
|
KCB-200 2CY-12/1.3-22 |
2 |
200 |
0.33 |
5 |
4 |
|
KCB-200 2CY-12/3.3-2 |
2 |
200 |
0.33 |
5 |
4 |
|
KCB-200 2CY-12/6-2 |
2 |
200 |
0.33 |
5 |
5.5 |
|
KCB-200 2CY-18/10-2 |
2 |
200 |
0.33 |
5 |
5.5 |
|
KCB-200 2CY-18/3.6-2 |
2-1/2 |
200 |
0.33 |
5 |
7.5 |
|
KCB-300 2CY-18/3.6-2 |
3 |
300 |
0.33 |
5 |
5.5 |
|
KCB-300 2CY-18/6-2 |
3 |
300 |
0.33 |
5 |
7.5 |
|
KCB483.3 2CY-29/3.6-2 |
3 |
483.3 |
0.33 |
5 |
7.5 |
|
KCB483.3 2CY-29/3.6-2 |
3 |
483.3 |
0.33 |
5 |
11 |
|
KCB-633-2 2CY-38/2.8-2 |
4 |
633 |
0.28 |
5 |
11 |
|
KCB-633-2 2CY-38/8-2 |
4 |
633 |
0.28 |
5 |
22 |
|
KCB-960-2 2CY-60/3-2 |
4 |
960 |
0.3 |
5 |
18.5 |

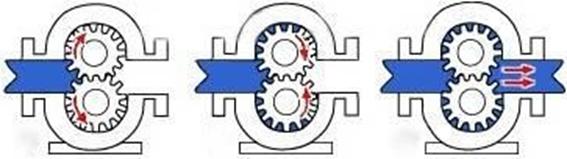

Working Principle
