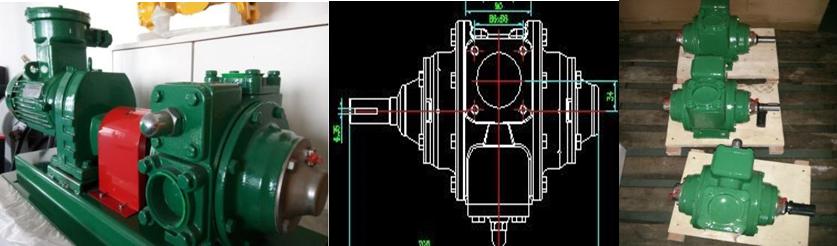

YB-50 Single Shaft             YB-80 Double Shaft

V-belt drive rotary vane pump   Coupling-drive rotary vane pump

Main Features

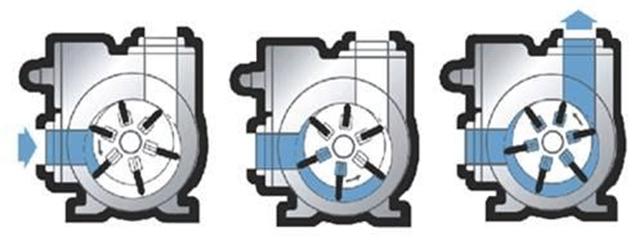

YB series Self-priming rotary vane pump with internal by-pass valve.The pumps use a rotor with sliding vanes to draw the liquid. The material of construction is nodular iron with sliding vanes built in a special self lubricating material. Due to its efficiency, the pumps can handle viscous and also volatile liquids and require less horsepower than other equivalent pumps. The pumps are capable of higher flow-rates at lower number of revolutions than other designs.

Advantage

Durable pumps for fast and quiet operation.

Sliding vane design provides sustained performance and trouble free operation, high reliability.

Adjustable relief valve protects pump from excessive pressure.

T-type strainers are available to protect pumping system from damage caused by welding slag and other matter in the piping and tanks.

Application: Fuel oil delivery truck

Fleet refueling

Lube oil

Aviation refuelers

Transport of Petro Chemicals, gasoline, biofuels, solvents and many more.

Installation:

The pumps are widely used on mobile applications or fixed installations. With cardan shafts or hydraulic motor the pumps can be installed on any kind of tank truck or they are coupled to electric or diesel engine on metal bases to be used either on terminals, heavy duty dispensers, pumping/metering skids. mobile transfer units. Equipped with Teflon seals the pumps can also be used on a wide variety of solvents in the petrochemical industry.

Construction:
