OGM-25/40/50 aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability, applying in the petroleum, chemical, food industry, etc.
Technical specification:
|
Model： |
OGM-A-25 |
OGM-A-40 |
|
OGM-A-50 |
|
|
|
|
|
|
|
Size： |
1" |
1 " |
|
2" |
|
Min.Flow Rate： |
20L/min |
25L/min |
|
30L/min |
|
|
|
|
|
|
|
Max.Flow Rate： |
120L/min |
250L/min |
|
300L/min |
|
|
|
|
|
|
|
Accueacy： |
±0.5% |
±0.5% |
|
±0.5% |
|
|
|
|
|
|
|
Repeatability： |
≤0.03% |
≤0.03% |
|
≤0.03% |
|
|
|
|
|
|
|
Max.Viscosity： |
1000CPS |
1000CPS |
|
1000CPS |
|
|
|
|
|
|
|
Max.Operating Pressuer： |
3.4MPa |
1.8MPa |
|
1.8MPa |
|
|
|
|
|
|
Advantages:
·Compact size, easy maintenance
·Easy to read and operate mechanical display
·Horizontally and vertically flexibility of installation options ·Low pressure drop
|
OGM-A-50 Oval Gear Meter with Mechanical Register |
OGM-A-25-P Oval Gear Meter Pulser |
|||||
|
Package data: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model |
|
OGM-A-25 |
|
|
OGM-A-40 |
|
|
|
|
|
|
|
|
|
|
Dimension |
|
40×23×31mm |
|
49×28×22mm |
|
|
|
|
|
|
|
|
|
|
|
Net Weight |
|
8kg |
|
|
10kg |
|
|
|
|
|
|
|
|
|
|
Gross Weight |
|
9kg |
|
|
11kg |
|
|
|
|
|
|
|
|
|
|
Package |
|
4pc/Carton |
|
|
2pc/Carton |
|
Application: |
|
|
|
|
|
|
Widely used in Petroleum, Chemical, Medicine, Tranportation, food industry etc..

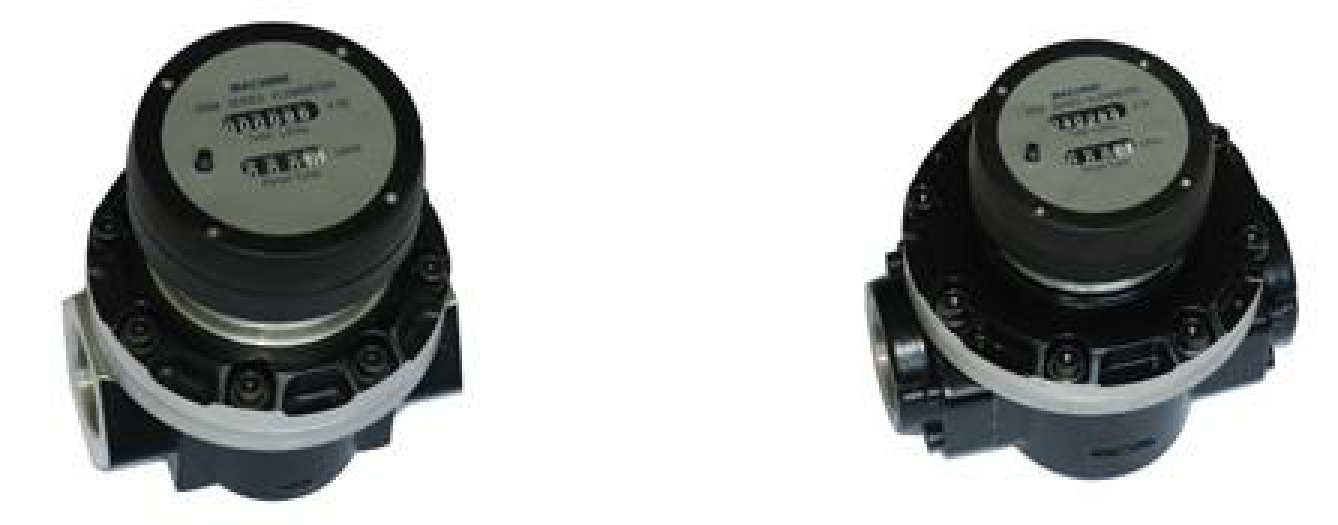

OGM-A-25 OGM-A-50
