Characteristics:
Excellent stepless adjusting mechanism allows a micro adjustment of the meter; High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow; Low maintenance, no metal-to-metal contact in measuring chamber, Long life service; Low pressure loss, a true gravity flow meter; Accuracy regardless of pressure fluctuations, temperature variation, viscosity; Choice of aluminum, cast iron, brass and stainless steel materials of construction.
Industries:
Automotive; Adhesives; Agriculture; Asphalt ; Aviation fueling ; Animal feeds; Beverage; Cosmetics ; Chemical processing; Concrete Add mixtures; Dairy; Liquid fertilizers; Food processing ; Fuel oil delivery; General industrial; Hydrocarbon processing; Liquefied gases; Lube oils; Marine ; Paint and varnish ; Petroleum marketing ; Petroleum production ; Pharmaceutical; Printing ink; Pulp &paper; Refining commercial Solvents; Recycling Railroad ; Textile.
Application:
1. refined petroleum products;
2. aviation gasolines and jet fuels;
3. a wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,.
4. treated waters (deionized, demineralized, and potable);
5. chlorinated solvents and general solvent metering;
6. acid pH liquids;
7. liquefied petroleum gas(LPG);
8. crude oil, also for heated and/or viscous liquids;
9. oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;
10.herbicide;
11.sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids ,abrasive liquids.
Technical Specification:
|
Technical Specification: |
|||||||||
|
Model |
M-40-1 |
M-50-1 |
M-50H-1 |
M-80-1 |
M-80H-1 |
M-100-1 |
M-100H-1 |
M-150-1 |
M-150H-1 |
|
Size |
40mm /1.5” |
50mm / 2 " |
80mm / 3 " |
100mm / 4 " |
150mm / 6 " |
||||
|
Flow Range |
25-250 |
38-380 |
55-550 |
75-750 |
115-1150 |
130-1300 |
170-1700 |
225-2250 |
300-3000 |
|
Volume/Rev. |
0.309L |
0.681L |
1.839L |
5.102L |
9.507L |
||||
|
Max.Pressure |
10Bar/150PSI |
25Bar/350PSI |
|||||||
|
Accuracy |
±0.2% |
||||||||
|
Repeatability |
≤0.05% |
||||||||
|
Standard Measurement |
Liter / US Gallon/IMP Gallon |
||||||||
|
Viscosity |
30SSU~1,500,000SSU |
||||||||
|
|
|
||||||||
Note:4"&6" flange available for M-150/6" Meter.
|
Packaging Data |
|||||
|
Model |
M-40-1 |
M-50-1 |
M-80-1 |
M-100-1 |
M-150-1 |
|
Packaging |
1 pc/Wooden Case |
||||
|
Net Weight |
23Kgs |
26Kgs |
40Kgs |
70Kgs |
130Kgs |
|
Gross Weight |
35Kgs |
38Kgs |
55Kgs |
90Kgs |
155Kgs |
|
Size |
53×48×53cm |
53×48×53cm |
58×50×61cm |
76×64×72cm |
80×65×79cm |

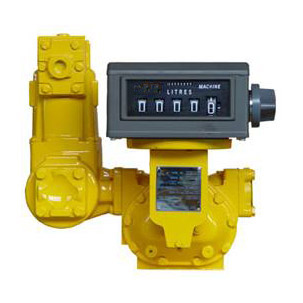

M series pd flow meter model M-40-1 (1.5”): with mechanical register, air eliminator and strainer
M series pd flow meter model M-50-1 (2”): with mechanical register, air eliminator and strainer
M series pd flow meter model M-80-1(3”): with mechanical register, air eliminator and strainer

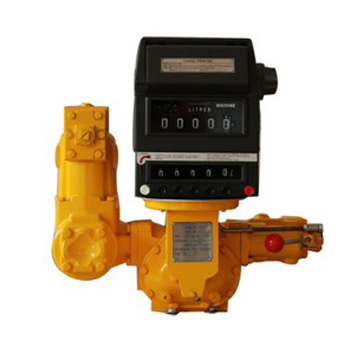

M seires pd flow meter model M-50-NX-1, 2 inch: preset meter with mechanical preset register, printer, strainer, air eliminator and preset valve
M-150-1 pd flow Meter with mechanical register 4” flange, 6” for option
