Characteristics:
•Stepless adjusting mechanism allow a micro adjustment of the meter
•Special designed Manifold in line separates from measuring chamber to avoid stress coming from the installation
• Low head loss
•Simple construction, rotor - blades for easy and low maintenance cost
•Wearing compensation to maintain a good accuracy all along the years
•Meter also for viscous products up to 800 Cst
|
Material |
SM-80-1 Meter with Mechanical Register |
|
Manifold: Steel or Aluminium |
|
|
Body: Ni-resist Cast Iron |
|
|
Covers: Steel |
|
|
Rotor: Aluminium |
|
|
Baldes: Carbon |
|
|
Bearings: Stainless Steel |
|
|
Seals/ gaskets: Viton, Buna”N” |
Application:
Oil company: refineries, Oil depots, gas station and Tank trucks distribution
Airports: aircraft refuellers
Army: depot reception or loading trucks
Administration (railway companies, public transport)
Ports: Boats/barges
Private oil transport companies
|
Technical Specification: |
||
|
Model |
SM-50-I |
SM-80-1 |
|
Size |
50mm/2" |
80mm/3" |
|
Volume per Revolution |
0.4L/0.08US Gallon |
2.27L/0.5US Gallon |
|
Max. Flow Rate |
24M3/h or 400L/Min or 105US Gallon |
80M3/h or 1333L/Min or 360US Gallon |
|
Min. Flow Rate |
2.4M3/h or 40L/Min or 10.5US Gallon |
8M3/h or 133.3L/Min or 36US Gallon |
|
Accuracy |
±0.2% |
±0.2% |
|
Repeatability |
≤0.05% |
≤0.05% |
|
Max. Operation Pressuer |
8Bar/120PSI/8.3Kg/cm3 |
10Bar/150PSI/10.5Kg/cm3 |
|
Working Temp. |
-40oC~+60oC |
-40oC~+60oC |
|
Max. Viscosity |
800Cps/3850SSU |
|
|
Technical Specification: |
||
|
Model |
SM-50-1 |
SM-80-1 |
|
Packaging |
1pc/Carton |
|
|
Net Weight |
20kgs |
56kgs |
|
Gross Weight |
22kgs |
58kgs |
|
Size |
29×23.5×40cm |
36×37×40cm |

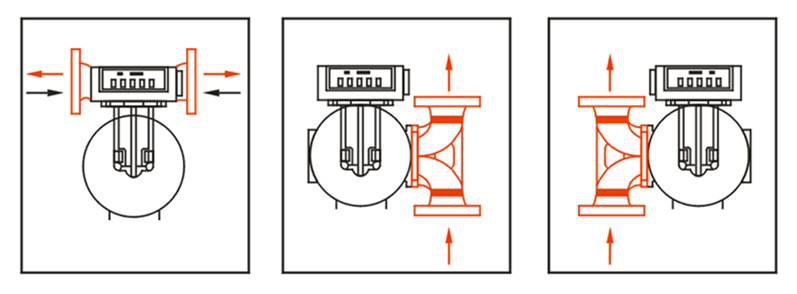

Flexible Installation
