Technology Specification:

Linearity

0.5%

Repeatability

0.2%

Accuracy

±1% of reading at rates >0.2 mps

Response Time

0-999 seconds, user-configyrable

Velocity

±32 m/s

Pipe Size

20mm-6000mm

Rate Units

Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configerable.

Totalizer

7-digit totals for net, positive and negative flow respectively

Liquid Types

Virtually all liquids

Security

Setup values Modification Lockout. Access code needs unlocking

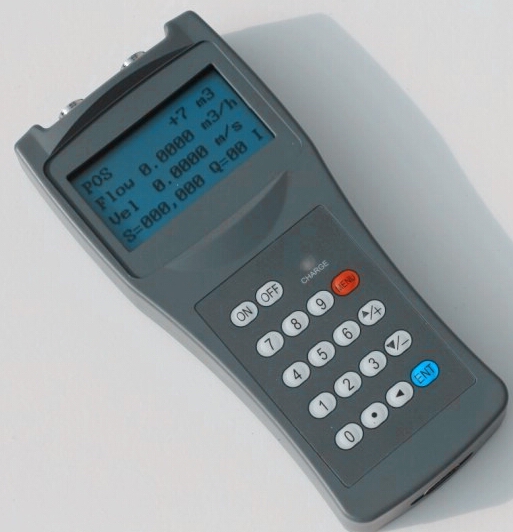

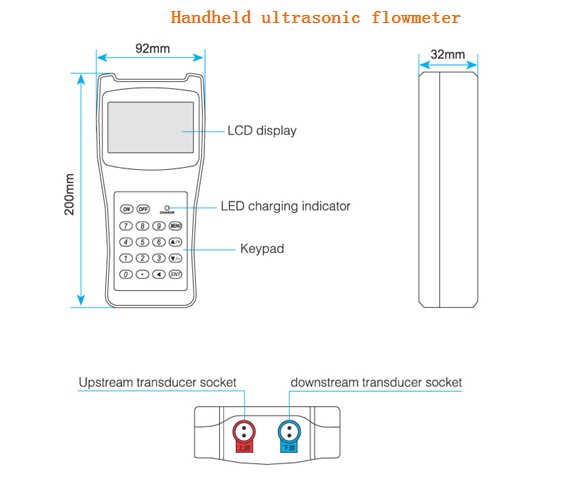

Display

4*16 English letters

Communication Interface

RS-232C, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry.

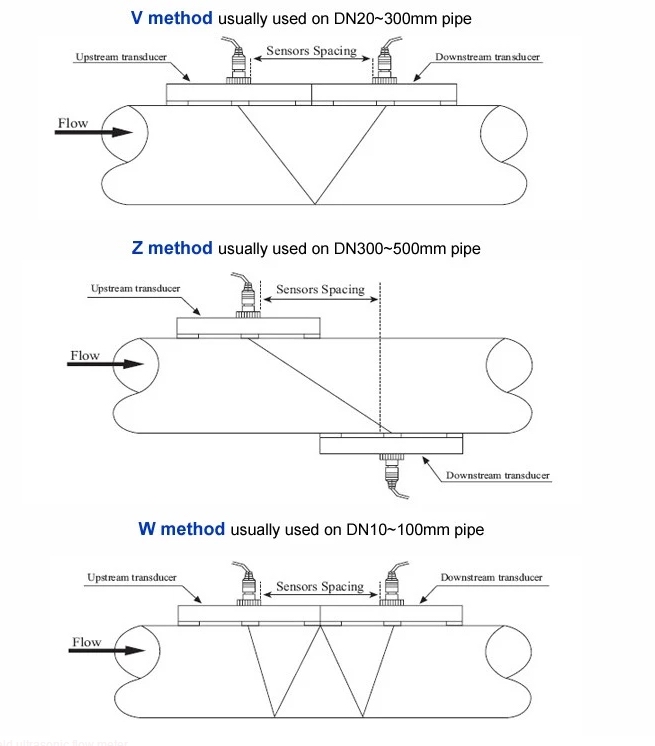

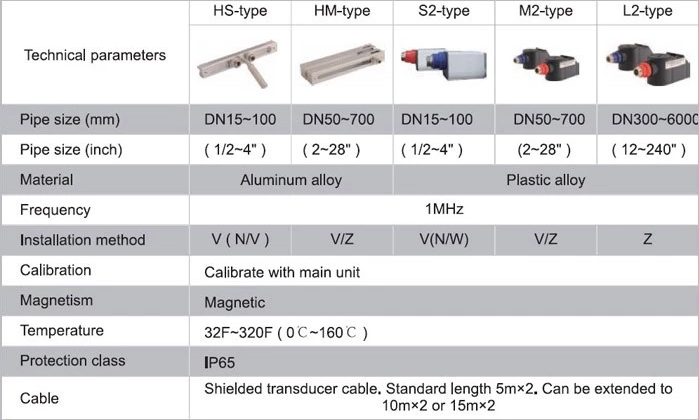

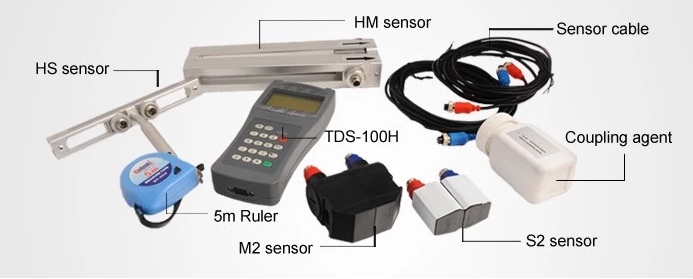

Transducers

Model M1 for standard, other 3 madels for optional.

Transducer Code Length

Stardard 2*10 meters, optional 2*500 meters

Power Supply

3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation.

100V-240VAC for the charger.

Date Logger

Built-in date logger can store over 2000 lines of date

Manual Totalizer

7-digit press-key-to-go totalize for calibration
